50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications

Nguồn gốc Tây An, TRUNG QUỐC
Hàng hiệu XIWUER
Chứng nhận ISO9001,ISO14001,ISO45001
Số mô hình CT8-2-50KV-5600pf
Số lượng đặt hàng tối thiểu 1pcs
Giá bán có thể đàm phán
chi tiết đóng gói Thùng carton
Thời gian giao hàng 5-7 ngày
Điều khoản thanh toán L/C, T/T.
Khả năng cung cấp 4.000.000 chiếc một năm

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Làm nổi bật

Smart Grid Lightning Protection High Voltage Doorknob Capacitor

,

Precision Engineering HV Doorknob Capacitor

,

Pulse Power Applications Ceramic Doorknob Capacitor

Để lại lời nhắn
Mô tả sản phẩm
High Voltage Doorknob Capacitors: CT8-2-50KV-5600pF
Capacitor Solutions for Smart Grid Lightning Protection
50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications 0
Technical Specifications
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur 1min








≧1.0×105MΩ

D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
Smart Grid Lightning Protection Applications
With the advancement of smart grid technology, lightning protection systems are evolving from passive protection to active monitoring and predictive maintenance solutions. In smart SPDs integrated with NB-IoT technology, our high-voltage doorknob capacitors serve dual functions:
  • Traditional filtering capabilities for surge protection
  • Providing stable voltage sampling references for online monitoring circuits
For instance, in Dekai Technology's smart capacitor cabinet SPDs, these capacitors enable real-time data transmission of leakage current and temperature measurements via RS485 communication. The capacitors' exceptional performance characteristics include:
  • Low voltage coefficient
  • Linear temperature characteristics (±0.5% value change from -40°C to +85°C)
These features ensure precise monitoring data accuracy. In UHV substations, our custom doorknob capacitors (voltage ≥ 300kV) form RC absorption circuits with ZnO varistors, achieving:
  • Over 60% reduction in switching overvoltage steepness
  • Effective protection for GIS (gas insulated switchgear) against VFTO (fast transient overvoltage)

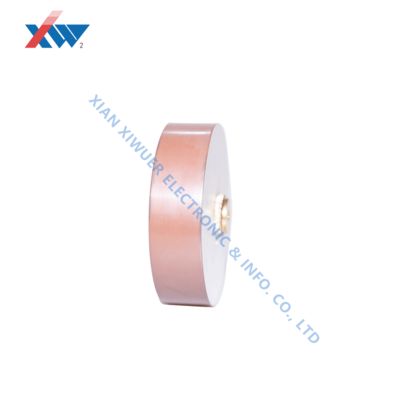

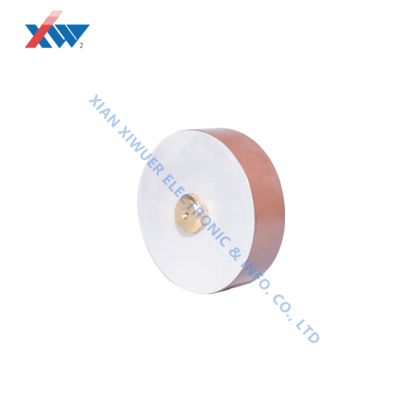

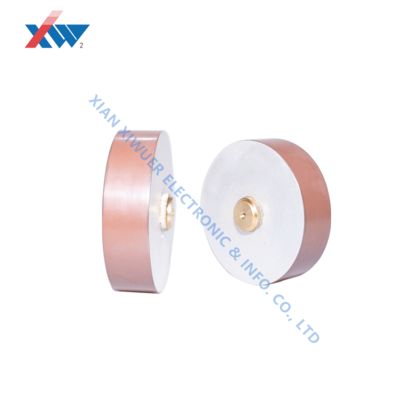

50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications 1 50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications 2 50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications 3
