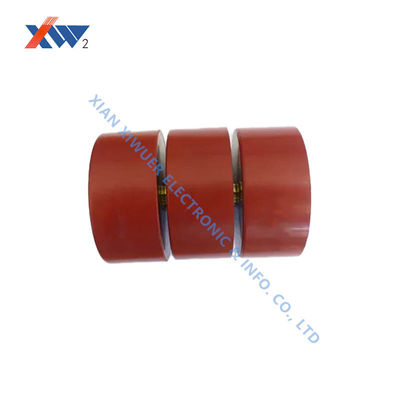

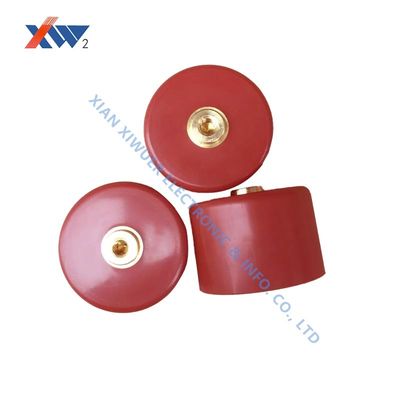

Experts In Non-standard Coupling Scenarios: Customized Capacitor Solutions For Your Special High-voltage Coupling Needs

Experts in non-standard coupling scenarios: Customized capacitor solutions for your special high-voltage coupling needs

Drawing:


Parameters:

While standard coupling device designs can meet most applications, cutting-edge scientific research projects or special industrial applications (such as high-voltage SiC device drive power extraction, signal extraction in specific frequency bands, and monitoring in extreme environments) often come with unique requirements. These may include non-standard voltage/capacitance combinations, extremely low coupling capacitance values ​​to suppress common-mode interference, or use in strong magnetic fields or high vacuum environments. In these scenarios, a standardized doorknob capacitor may not perfectly meet all requirements.

Challenges of Special Coupling Applications

Special Voltage and Capacitance Requirements: For example, to reduce common-mode interference in high-voltage SiC device-driven energy harvesting devices, coupling capacitance values ​​must be optimized to the picofarad (pF) level (e.g., 0.74pF), requiring specialized structures and processes.

Extreme Frequency Response Requirements: Certain applications may require capacitors with ESR and ESL below the lower limits of existing standards to achieve wider bandwidths or faster pulse response.

Physical Space Constraints and Environmental Compatibility: Integration into compact equipment cavities or meeting specialized environments such as non-magnetic and ultra-high vacuum compatibility requires specialized designs for capacitor form factors, materials, and processes.
