27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers

Nguồn gốc Tây An, TRUNG QUỐC
Hàng hiệu XIWUER
Chứng nhận ISO9001,ISO14001,ISO45001
Số mô hình CT8-2-27KV-38PF
Số lượng đặt hàng tối thiểu 1 mảnh
Giá bán có thể đàm phán
chi tiết đóng gói thùng carton
Thời gian giao hàng 5-7 ngày
Điều khoản thanh toán L/C,T/T
Khả năng cung cấp 8.000.000 một năm

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Nominal Capacitance Range 35 ~42 Application used as sensor unit of electrified display device below 35KV
Làm nổi bật

Ceramic Live Line Capacitor

,

Medium Voltage Live-Line Indication Capacitor

,

Capacitive Voltage Dividers Capacitor

Để lại lời nhắn
Mô tả sản phẩm
27KV 38PF Live Line Capacitors Hv Ceramic 3.6KV-40.5KV XIWUER
27KV 38PF Voltage Indicator High Voltage Ceramic Capacitor 3.6KV-40.5KV
Applications
  • Medium Voltage live-line indication
  • Re-routing of systems in the event of inadvertent disconnection
  • Capacitive voltage dividers for MV voltage measurement
Voltage Nominal Capacitance (pF) Nominal Capacitance Range
Test Frequency:1kHz±20%
Test Voltage:1V±0.2V
Power Frequency Withstand Voltage
(in the insulation oil)
Partial Discharge Lightning Impulse (kV)
(Maximum Peak Voltage)
(in the insulation oil)
27kVAC 38 37~41pF 70kVAc/5min 26.4kVac≤10PC 125

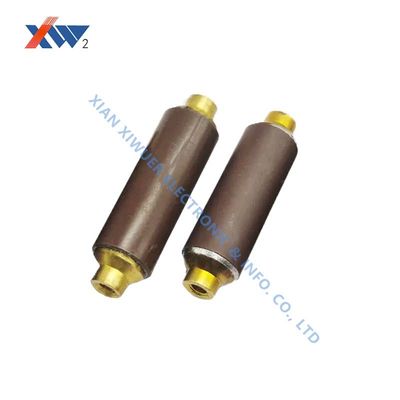

27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers 0 27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers 1
Notes
  • Terminals are soldered to the ceramic parts with 221° melting point solder.
  • Capacitors of this type have been used in transformer oil and in SF6 gas. In these cases we would recommend a paint coating on the otherwise bare ceramic surface.
  • Components are lead(Pb) free and RoHS compliant.
